Sea containers specification |
| |
|
Air
containers and pallets |
|
|
| Type : AMA CONTAINER |
|
|
|
ATA code |
M1 |
|
Weight Limitation Inc. ULD Tare
Weight |
6,804 kg |
|
Tare Weight |
360 kg |
|
Internal Volume |
621 cu. ft. 17.58mc |
|
Loadable Aircraft Type |
747F |
|
Top |
| Type : AMF CONTAINER |
|
|
|
ATA code |
n/a |
|
Weight Limitation Inc. ULD Tare
Weight |
5,035 kg |
|
Tare Weight |
360 kg |
|
Internal Volume |
516 cu. ft.14.6 mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : AMU CONTAINER |
|
|
|
ATA code |
LD39 |
|
Weight Limitation Inc. ULD Tare
Weight |
5,035 kg |
|
Tare Weight |
290 kg |
|
Internal Volume |
557 cu. ft. 15.77 mc |
|
Loadable Aircraft Type |
747, 747F |
|
|
Top |
| Type : ALF CONTAINER |
|
|
|
ATA code |
LD6 |
|
Weight Limitation Inc. ULD Tare
Weight |
3,175 kg |
|
Tare Weight |
155 kg |
|
Internal Volume |
310 cu. ft., 8.78 mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : AAU CONTAINER |
|
|
|
ATA code |
LD29 |
|
Weight Limitation Inc. ULD Tare
Weight |
4,626 kg |
|
Tare Weight |
355 kg |
|
Internal Volume |
505 cu. ft., 14.3 mc |
|
Loadable Aircraft Type |
747, 747F |
|
|
Top |
| Type : AAP CONTAINER |
|
|
|
ATA code |
LD9 |
|
Weight Limitation Inc. ULD Tare
Weight |
4,626 kg |
|
Tare Weight |
222 kg |
|
Internal Volume |
370 cu. ft., 10.51 mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : AKE CONTAINER |
|
|
|
ATA code |
LD3 |
|
Weight Limitation Inc. ULD Tare
Weight |
1,588 kg |
|
Tare Weight |
100 kg |
|
Internal Volume |
152 cu. ft, 4.3mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : AVJ CONTAINER |
|
|
|
ATA code |
LD1 |
|
Weight Limitation Inc. ULD Tare
Weight |
1,588 kg |
|
Tare Weight |
100 kg |
|
Internal Volume |
162 cu.ft., 4.80mc |
|
Loadable Aircraft Type |
747m, 747F |
|
|
Top |
| Type : AAP2 CONTAINER |
|
|
|
ATA code |
LD9 |
|
Weight Limitation Inc. ULD Tare
Weight |
4,626 kg |
|
Tare Weight |
222 kg |
|
Internal Volume |
371 cu. ft., 10.51mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : RAP CONTAINER |
|
|
|
ATA code |
LD9 |
|
Weight Limitation Inc. ULD Tare
Weight |
4,626 kg |
|
Tare Weight |
330 kg |
|
Internal Volume |
352 cu. ft., 9.2mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus
|
|
|
Top |
| Type : RKN CONTAINER |
|
|
|
ATA code |
LD3 |
|
Weight Limitation Inc. ULD Tare
Weight |
1,588 kg |
|
Tare Weight |
190 kg |
|
Internal Volume |
125 cu. ft., 3.55mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |
| Type : P7E, PGA Pallet |
|
|
|
Size |
Base :896" x 238.5"
Height :96"
(Q6 Contour), 118" (Q7 Contour) |
|
Weight Limitation Inc. ULD Tare
Weight |
11,340 kg |
|
Tare Weight |
480 kg |
|
Loadable Aircraft Type |
747F |
|
|
Top |
| Type : PEB Pallet |
|
|
|
Size |
Base : 53" x 88" Height : 84" |
|
Weight Limitation Inc. ULD Tare
Weight |
1,800 kg (B-HIH -
1,300kg) |
|
Tare Weight |
55 kg |
|
Loadable Aircraft Type |
747F |
|
|
Top |
| Type : PMC, PQP,
P6P Pallet |
|
|
|
Size |
Base : 96" x 125" Height : 64" (Passenger
flight), 96" (Q6 Contour), 118" (Q7
Contour) |
|
Weight Limitation Inc. ULD Tare
Weight |
5,035 kg
(LD), 6,804 kg |
|
Tare Weight |
105 kg |
|
Internal Volume |
125 cu. ft., 3.55mc |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus
|
|
|
Top |
| Type : P1P, PAG
Pallet |
|
|
|
Size |
Base :88" x 125" Height : 64" (Passenger flight),
96" (Q6 Contour), 118" (Q7 Contour) |
|
Weight Limitation Inc. ULD Tare
Weight |
4,626 kg
(LD), 6,033 kg |
|
Tare Weight |
105 kg |
|
Loadable Aircraft Type |
747, 747F, 777, Airbus |
|
|
Top |

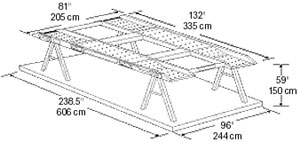

| Type : VZA, VRA |
|
|
|
Size |
Fitted on PGA
20 ft. Pallet |
|
Weight Limitation Inc. ULD Tare
Weight |
2,500 kg (Upper Car) 9,300 kg (Max Gross Weight
of Pallet) |
|
Tare Weight |
319 kg (2 trestles: 139 kg Platform: 180
kg) |
|
Loadable Aircraft Type |
747F Upper Deck |
|
Max Width for Lower Car |
81" / 205
cm |
|
Max Centre Height for Lower
Car |
59" / 150
cm |
|
Max Wheel Base |
312
cm |
|
|
Top |
|
|
|
|
